Onboarding New Projects in an organization can be challenging with all the bits and pieces that an IT admin wanted to perform. We wanted to create a process/ pipeline to onboard new projects to a newly built environment. Following are the initial requirements
Onboarding New Projects are based on
- Github Actions
- Contains both IAC and App code deployments
- Must leverage the existing subscription pattern
- Needs a new resource group
- Full action required at the resource group level.
Here is what I came up with,

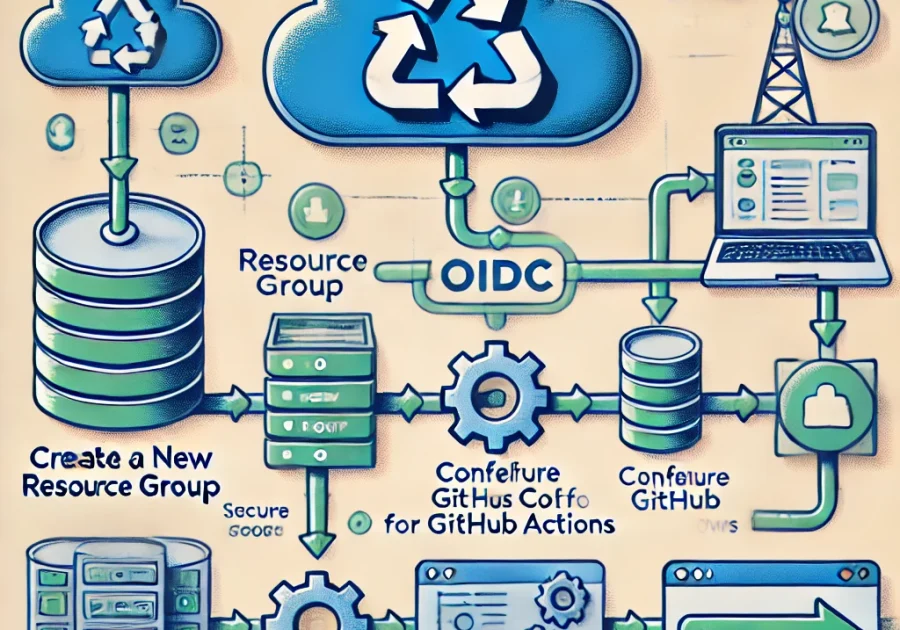

Based on these requirements, I came up with the following process:
- Create a New Resource Group: The first step is to create a new resource group in the existing subscription pattern. This resource group will serve as the dedicated environment for the new project.
- Configure OIDC for GitHub Actions: Next, I configured an OIDC identity for GitHub Actions, allowing for secure authentication and authorization to the new resource group.
- Create GitHub Actions Workflows: With the new resource group and OIDC identity in place, I created GitHub Actions workflows for both IAC and app code deployments. These workflows will automate the deployment process and ensure consistent and reliable deployments.
- Test and Validate: Finally, I tested and validated the new pipeline, ensuring that it meets all the initial requirements and deploys the new project successfully.
By following this process, I was able to successfully onboard a new project to a newly built environment, ensuring a streamlined and efficient deployment process.
The provided YAML code is a GitHub Actions workflow named Global Solution - Deployment. This workflow can be triggered manually from the GitHub Actions tab in the repository and accepts several inputs, such as the environment, location, solution short name, and Git repository name.
The workflow defines several environment variables, including the Azure subscription IDs, Azure tenant ID, and the OIDC app registration client ID. It also defines the name of the service principal that will be created for the “dev” environment.
The workflow consists of two jobs: initialise_vars and post_configuration.
The initialise_vars job sets up the environment variables and outputs them for use in the subsequent job. It runs on the windows-latest operating system and does not have any specific requirements for permissions.
The post_configuration job depends on the initialise_vars job and performs the following tasks:
- Checks out the repository code using the
actions/checkoutaction. - Logs in to Azure using the OIDC app registration client ID and Azure tenant ID with the
azure/loginaction. - Creates a service principal for the “dev” environment if the environment is set to “test” using an inline PowerShell script.
- Previews the deployment of a resource group for the “dev” environment if the environment is set to “test” using the
az deployment sub what-ifcommand. - Creates the deployment of a resource group for the “dev” environment if the environment is set to “test” using the
az deployment sub createcommand.
The post_configuration job uses PowerShell to perform the Azure tasks and sets the Azure subscription based on the subscription ID output from the initialise_vars job. The job also uses the what-if parameter to preview the deployment before creating it, which allows for a dry run of the deployment to check for any issues.
The workflow also includes several conditional statements to check for the environment variable and perform the appropriate tasks. For example, the Creating a Service Principal Dev step only runs if the environment is set to “test”.
Overall, this GitHub Actions workflow provides a structured approach to deploying a global solution to Azure, with the ability to preview the deployment and create a service principal for the “dev” environment and “prod” environment. By using environment variables and outputs, the workflow can be easily customized and reused for different environments and solutions.
Line by Line Explanation
Parameters and Variable
on:
workflow_dispatch:
inputs:
environment:
description: "Production Or Test"
type: choice
required: True
options:
- "prod"
- "test"
location:
description: "azure resources deployment location"
type: choice
required: True
options:
- australiaeast
- westeurope
- westus
solutionShortName:
description: "short name for the solution better to have not more that 6 charactors"
type: string
required: True
default: ""
gitRepoName:
description: "Git Repo Name for Permission Delegations"
type: string
required: True
default: "" The on section at the beginning of the YAML code specifies the events that will trigger the workflow. In this case, the workflow is triggered by a manual dispatch event, which is specified by workflow_dispatch.
The inputs section under workflow_dispatch defines the input parameters that can be provided when manually triggering the workflow. There are four input parameters defined:
environment: This is a required input with a type ofchoice. Thechoicetype allows for a limited set of options to be provided, in this case, either “prod” or “test”. Thedescriptionfield provides a brief description of the input parameter.location: This is another required input with a type ofchoice. The options for this input parameter are the Azure resource deployment locations: “australiaeast”, “westeurope”, and “westus”.solutionShortName: This is a required input with a type ofstring. It has a default value of an empty string. Thedescriptionfield provides a brief description of the input parameter.gitRepoName: This is a required input with a type ofstring. It has a default value of an empty string. Thedescriptionfield provides a brief description of the input parameter.
By defining these input parameters, the workflow can be customized for different environments, Azure resource deployment locations, and solution names. The input parameters can be accessed in the workflow using the ${{ inputs.parameter_name }} syntax.
Section 1
- name: Creating a Service Principal Dev
if: inputs.environment == 'test'
uses: azure/powershell@v1
with:
inlineScript: |
# Install-Module Microsoft.Graph -Force -verbose
# Get-Module Microsoft.Graph
# Import-Module Microsoft.Graph -Force
$AccessToken = (Get-AzAccessToken -ResourceUrl "https://graph.microsoft.com").Token
(Get-AzAccessToken -ResourceUrl "https://graph.microsoft.com").Token
$sec = ConvertTo-SecureString $AccessToken -AsPlainText -Force
Connect-MgGraph -AccessToken $sec
Import-Module Microsoft.Graph.Applications
$appName = "${{ env.spDevName }}"
$myApp = Get-MgApplication -Filter "DisplayName eq '$appName'" -ErrorAction SilentlyContinue
if ($myApp) {
Write-Output "Application $appName already exists. Skipping creation..."
} else {
$myApp = New-MgApplication -DisplayName "$appName"
Write-Output "Application $appName created successfully."
}
$myApp
start-sleep -Seconds 300
$subscriptionId = (Get-AzContext).Subscription.Id
$tenantId = (Get-AzContext).Subscription.TenantId
$githubOrganisation = "orgName"
$githubRepo = "${{ inputs.gitRepoName}}"
$gitBranch = "main"
$gitFederationName = "grp-azure-${{ env.solutionShortName }}-actions"
$clientId = $myApp.id
$policy = "repo:$githubOrganisation/$($githubRepo):ref:refs/heads/$gitBranch"
$creds = get-MgApplicationFederatedIdentityCredential -ApplicationId $myApp.id | where-object {$_.Subject -eq $policy}
if($creds){
Write-Output "Policy details $policy already exists. Skipping creation..."
} else {
$federatedApp = New-MgApplicationFederatedIdentityCredential -ApplicationId $clientId `
-Audiences api://AzureADTokenExchange -Issuer "https://token.actions.githubusercontent.com" -Name $gitFederationName -Subject $policy
}
echo "devObjectId=$myApp.ObjectId" >> $env:GITHUB_ENV
azPSVersion: latest
This is a step in the GitHub Actions workflow that creates a service principal for the development environment if the environment input is set to test. Here’s a breakdown of the step:
name: The name of the step is “Creating a Service Principal Dev”.if: This is a conditional statement that checks if theenvironmentinput is equal totest. If true, the step will be executed.uses: This specifies the GitHub Marketplace action to be used, which isazure/powershell@v1in this case.with: This specifies the input parameters for theazure/powershell@v1action.inlineScript: This is a PowerShell script that performs the following tasks:- Gets an access token for Microsoft Graph API.
- Connects to Microsoft Graph API using the access token.
- Imports the
Microsoft.Graph.Applicationsmodule. - Checks if an application with the name
${{ env.spDevName }}already exists. If it does, the step skips the creation of the application. If not, the step creates a new application. - Creates a new federated identity credential for the application using the GitHub Actions OIDC provider.
- Sets the
devObjectIdenvironment variable to the object ID of the created application.
The PowerShell script performs the following tasks:
- Authenticates to Microsoft Graph API using the access token.
- Imports the
Microsoft.Graph.Applicationsmodule. - Checks if an application with the name
${{ env.spDevName }}already exists. If it does, the step skips the creation of the application. If not, the step creates a new application. - Creates a new federated identity credential for the application using the GitHub Actions OIDC provider.
- Sets the
devObjectIdenvironment variable to the object ID of the created application.
The step also sets the azPSVersion input parameter to latest, which specifies the version of Azure PowerShell to be used.
In summary, this step creates a service principal for the development environment if the environment input is set to test. It uses Microsoft Graph API to create a new application and a new federated identity credential for the application using the GitHub Actions OIDC provider. The step also sets the devObjectId environment variable to the object ID of the created application.
Section 2
- name: Create a ResourceGroup Dev
if: inputs.environment == 'test'
run: |
az account set --subscription ${{ env.test_subscription_id }}
az deployment sub create `
--name 'deploy_project_resourcegroup' `
--location '${{ inputs.location }}' `
--subscription ${{ env.test_subscription_id }} `
--template-file bicep/operations/resource-group/main.bicep `
--parameters `
location="${{ needs.initialise_vars.outputs.location }}" `
workloadTier="${{ needs.initialise_vars.outputs.workloadTier }}" `
deploymentEnvironment="${{ needs.initialise_vars.outputs.environment }}" `
solutionShortName="${{ needs.initialise_vars.outputs.solutionShortName }}" `
principalId="${{ env.devObjectId }}"
shell: pwshThis is a step in the GitHub Actions workflow that creates a resource group in the test subscription if the environment input is set to test. Here’s a breakdown of the step:
name: The name of the step is “Create a ResourceGroup Dev”.if: This is a conditional statement that checks if theenvironmentinput is equal totest. If true, the step will be executed.run: This specifies the commands to be executed in the step. The commands are written in PowerShell and are executed in thepwshshell.
az account set --subscription ${{ env.test_subscription_id }}: This sets the Azure subscription to the test subscription ID.
az deployment sub create --name 'deploy_project_resourcegroup' --location '${{ inputs.location }}' --subscription ${{ env.test_subscription_id }} --template-file bicep/operations/resource-group/main.bicep --parameters location="${{ needs.initialise_vars.outputs.location }}" workloadTier="${{ needs.initialise_vars.outputs.workloadTier }}" deploymentEnvironment="${{ needs.initialise_vars.outputs.environment }}" solutionShortName="${{ needs.initialise_vars.outputs.solutionShortName }}" principalId="${{ env.devObjectId }}"In summary, this step creates a resource group in the test subscription if the environment input is set to test. It uses the Azure CLI to set the subscription and create the resource group using a Bicep template. The input parameters for the Bicep template are passed using the --parameters flag.
Section 1 and Section 2 repeats for Prod environment selections as well.
Summary
To summarize, we have discussed a basic GitHub Actions workflow for deploying a global solution to Azure. This workflow includes creating a service principal, initializing variables, and creating a resource group in the test environment. We have also reviewed the different parts of the YAML code, including the on, env, jobs, and steps sections.
The pipeline we have discussed is a basic one, and there is always room for improvement depending on the specific requirements of the project. For example, additional steps can be added to deploy infrastructure or applications, or to perform testing and validation. Additionally, more advanced features such as parallelism, matrix builds, and dependencies can be added to further optimize the workflow.
Complete Pipeline
https://github.com/DaniduWeerasinghe911/Azure-New-Project-Onboarding
